CMITech EF-45NC

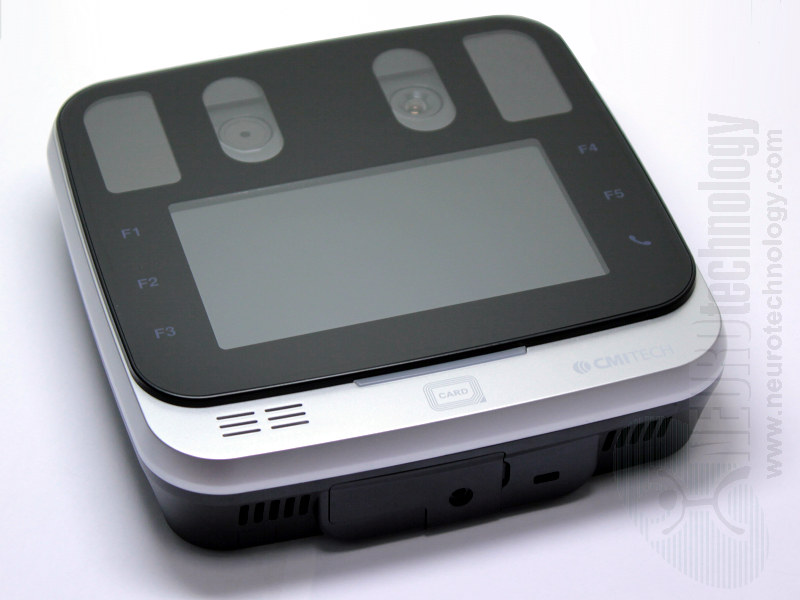

The EF-45NC is a compact device designed for simultaneous dual iris and face image capture. It features a display that provides real-time feedback, allowing subjects to position themselves naturally using on-screen guides and vocal prompts. The device communicates with host systems via Ethernet or USB,
A built-in proximity sensor assists with fast and accurate distance detections. Integrated image quality checks ensure proper gaze direction, minimal motion, and sufficient iris visibility before capture is completed. The captured iris images meet ISO/IEC 19794-6 and ISO 29794-6 standards for biometric quality.
Face images are recorded alongside iris data for visual verification or optional on-board face recognition. Separate copies of face images are available in visible light and near-infrared (NIR).
The device can operate with these Neurotechnology SDKs:
- MegaMatcher 2025.1 SDK – iris and face capture
- MegaMatcher On Card 2025.1 SDK – iris and face capture
- VeriEye 2025.1 SDK – iris capture
- VeriLook 2025.1 SDK – face capture
Specifications
| Name | EF-45NC |
| Manufacturer | CMITech Company Ltd. |
| Connection (data) | Etherner 10/100 Base-T (RJ45) USB |
| Connection (power) | AC 110V - 240V (via adapter) |
| Supported OS (*) | Microsoft Windows |
| Iris capture distance | 35 - 45 cm (13.8" - 17.7") |
| Iris image size | 2 images, 640 x 480 pixels each |
| Eye illumination | Near-infrared |
| Device size | 166 x 166 x 43 mm (6.5" x 6.5" x 1.7") |
| Device weight (without base) | 630 g (22.2 oz) |
| Operating emperature range | 0°C ~ +45°C (32°F ~ 113°F) |
| Operating humidity range | 10-90 % (non-condensing) |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
